u200aDescription:
KP184 series electronic load can be widely applied to product testing and ageing in LED lighting, power source, charger and accumulator. The current mode can be sued for simulating resistive load to discharge the battery and load the power source; the voltage mode can be used for simulating capacitive load and load the charge, as well as simulating the constant voltage of LED and load the power source. It is used simply, adjusted conveniently and has perfect protection function. The performance and function are unmatched by traditional slide wire resistor. If it is used for related industries, it could enhance productivity and reduce the cost.
>>Sofware: Click here.<<
>>Manual: Click here <<
Features:
1.It has four basic load modes like CC, CV, CW and CR .
2.Input positive and negative transposition protection and give alarm
3.Optimized heat radiation structure realizes high power density;
4.Digital control mode, high precision and good stability
5.Has overvoltage, overcurrent, overpower and overtemperature protection;
6.Voltage far-end measuring function (remote sense)
7.Auto testing function, external I/0 trigger signal, PASS, FAIL indication signal;
8.10KHz dynamic testing function;
9.Battery capacity testing function;
10.Testing of internal resistance of battery
11.Overcurrent protection point/protection time testing function
12.Fan PWM temperature control;
13.Power source 110VAC/220VAC shift use
14.RS485 and 232 communication interface
15.Synchronous operation function of multiple loaded devices online
16.Upper computer software support with powerful function and friendly interface
Specification:
Power consumption: < 20 W
Load voltage: DC 1 -150 V
Load current: 0-40A
Load power: 0-400W
Measuring precision Current: ±0.05%+5mA
Measuring Precision Voltage: ±0.05%+5mV
Control precision Current: ±0.05%+5mA
Control precision Voltage: ±0.05%+5mV
Communication Mode:RS232/RS485
Overvoltage: When the voltage is more than 152V,the load is turned off load
Over temperature: 85u2103
Overpower: Single channel: 410W
Power supply input fuse: 0.5

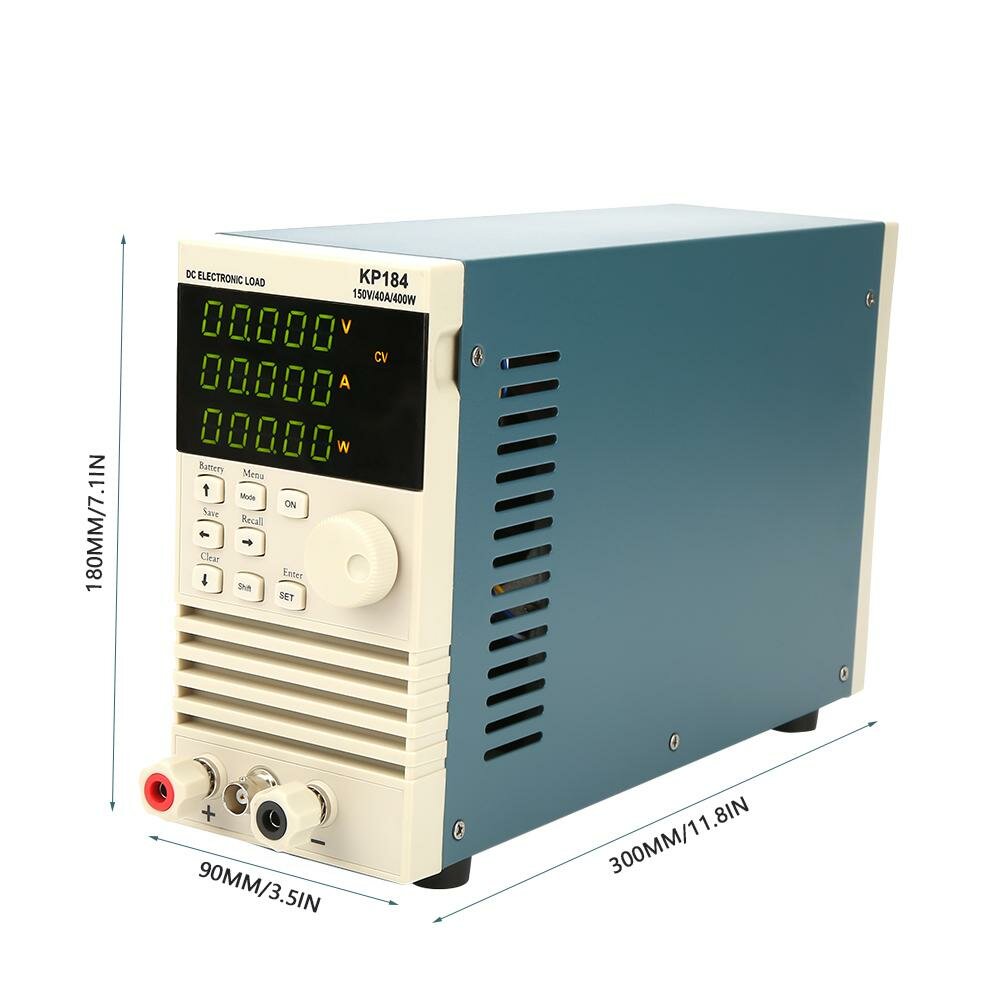

Size: 300*90*180mm/11.8*3.5*7.1in
Weight: Approx.4000g/141.1oz

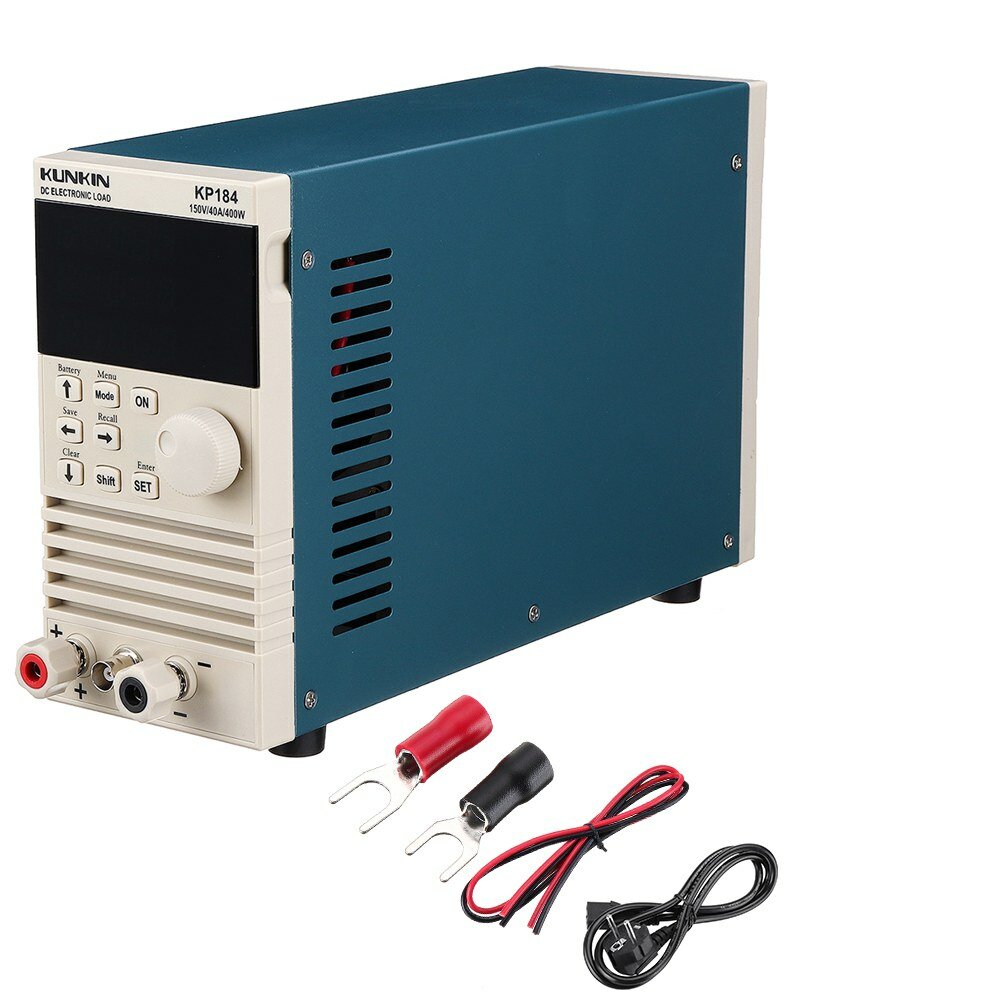

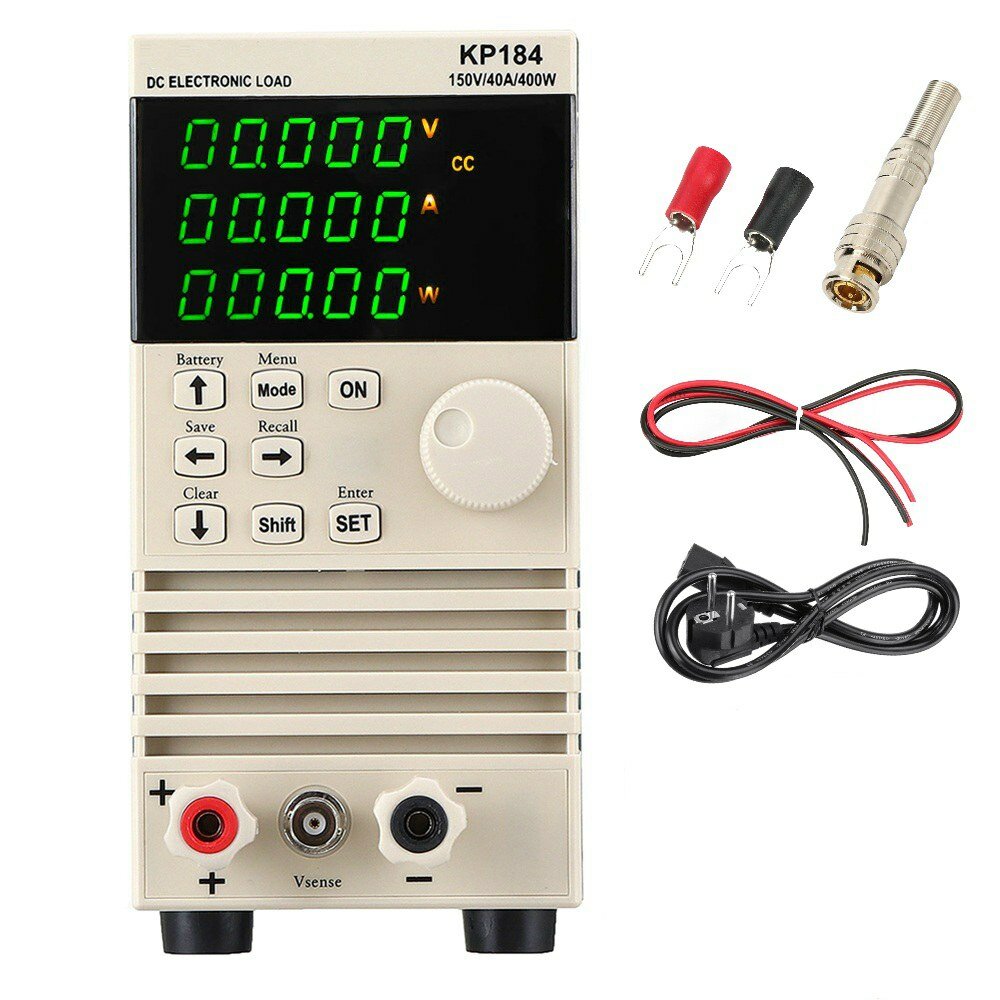

Package Includes:
1 x KP184 DC Electronic Load
1 x Plug(EU)
1 x Remote compensation terminal

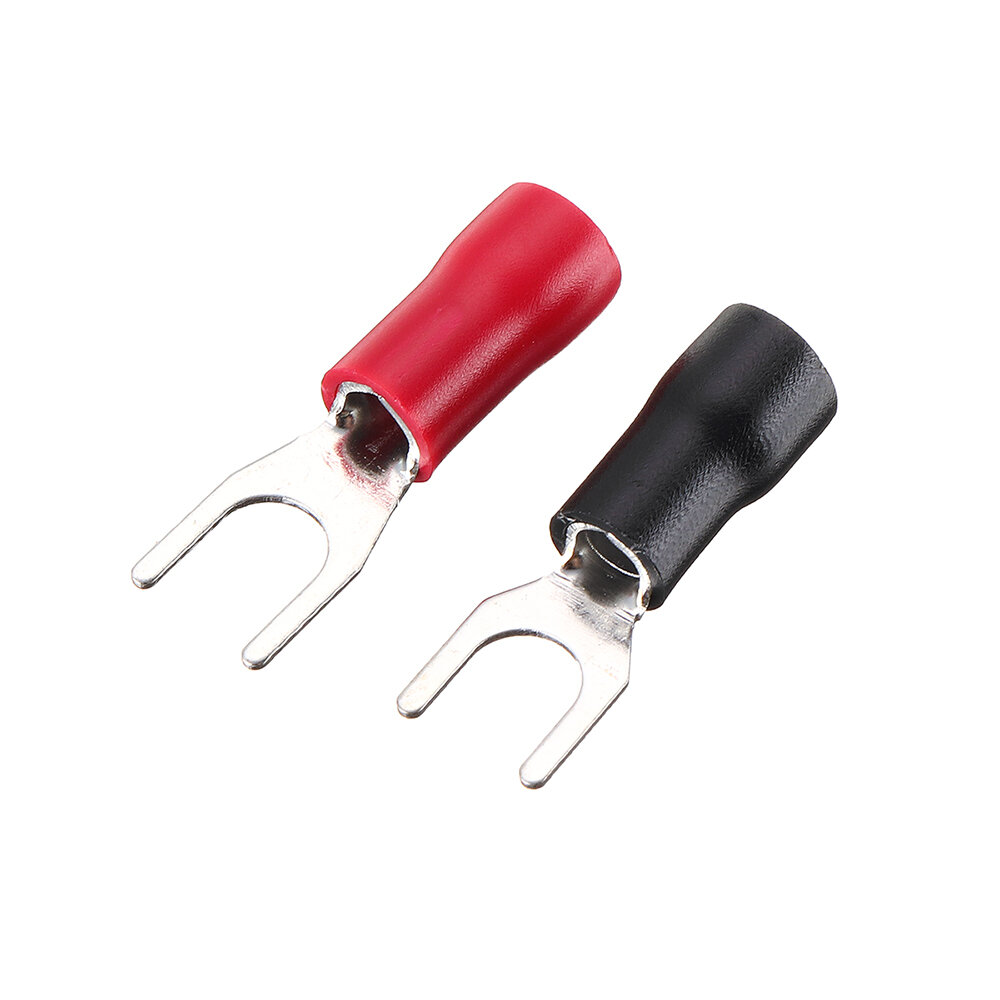

2 x Positive and negative test terminal
2 x Test cable
1 x user manual
Note:
We will send you a plug adapter according to your country.
Note:
This DC Load support secondary software programming, we hope you will have the software yourself ;
If you do not have, we can send it to you as a free gift, Software is only a gift ,not the goods ,so we hope you are professional for software using ; it is a free and development Software; it is only for Win7 or IE system

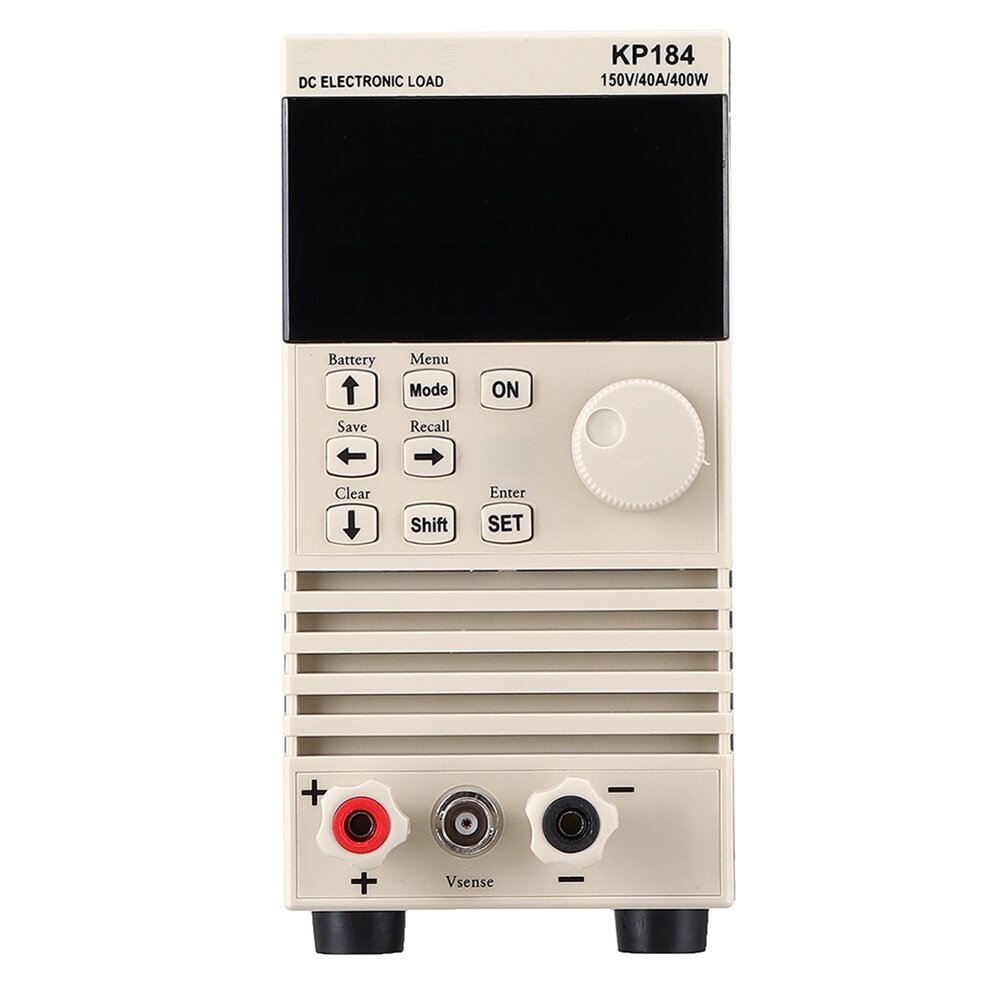

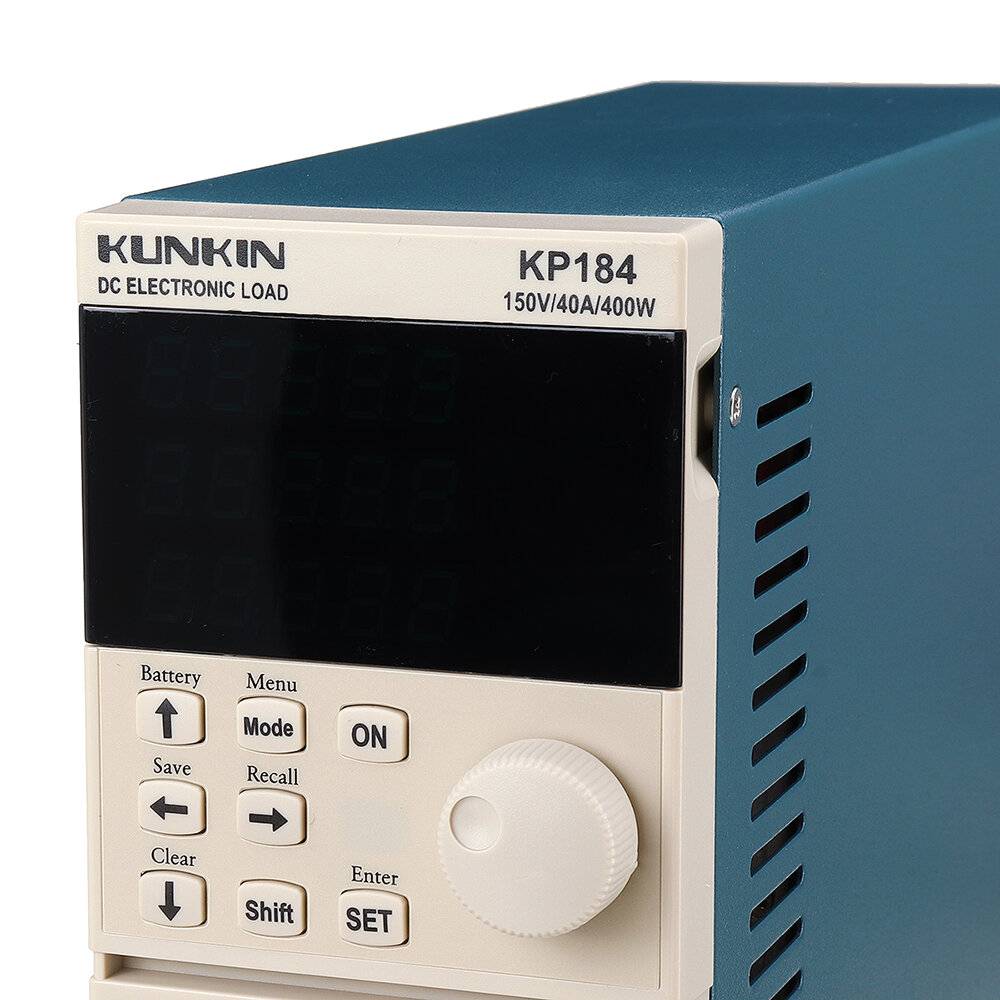

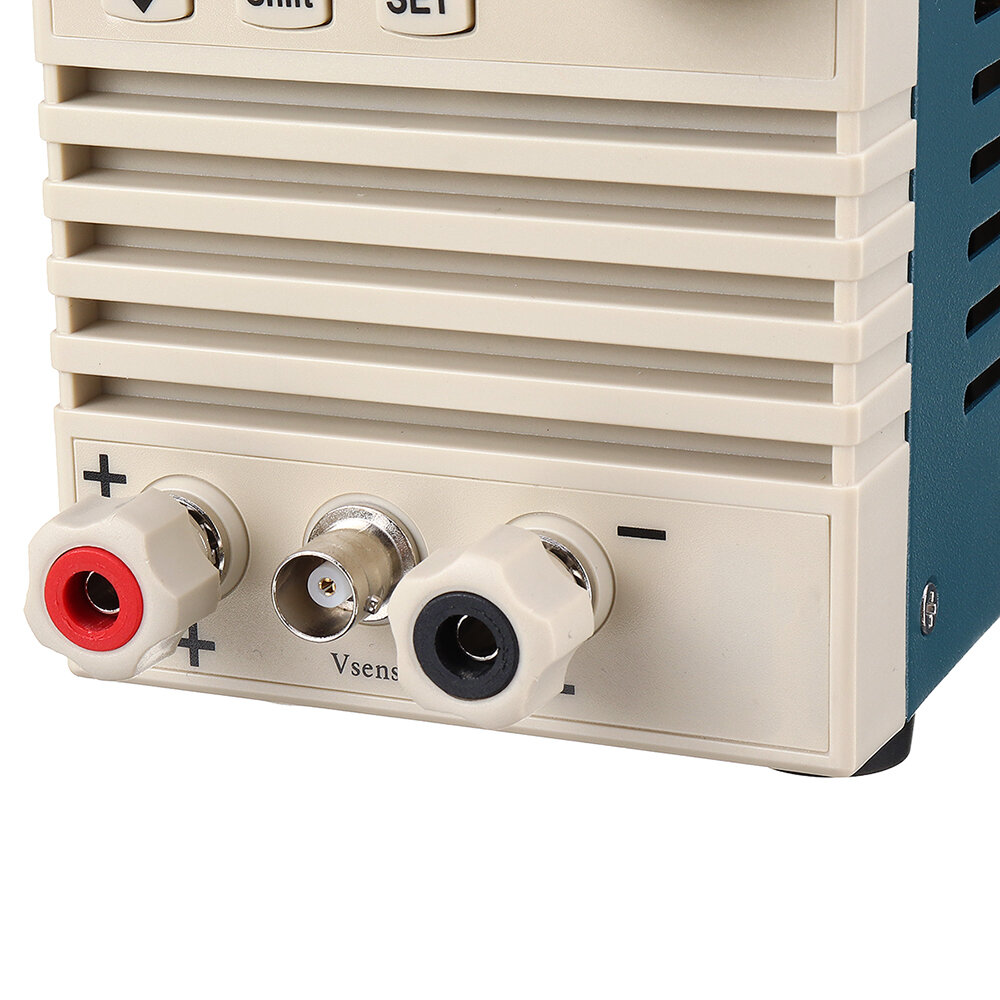

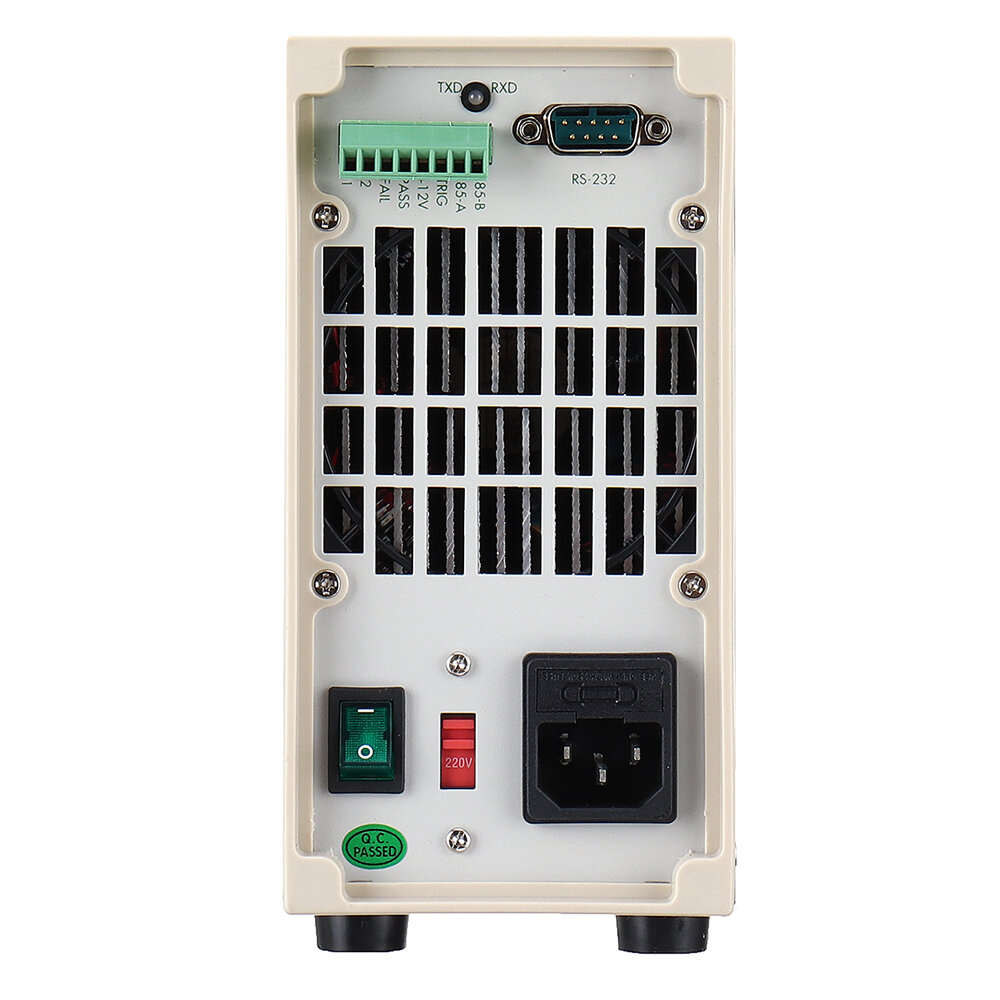

Details Pictures:
