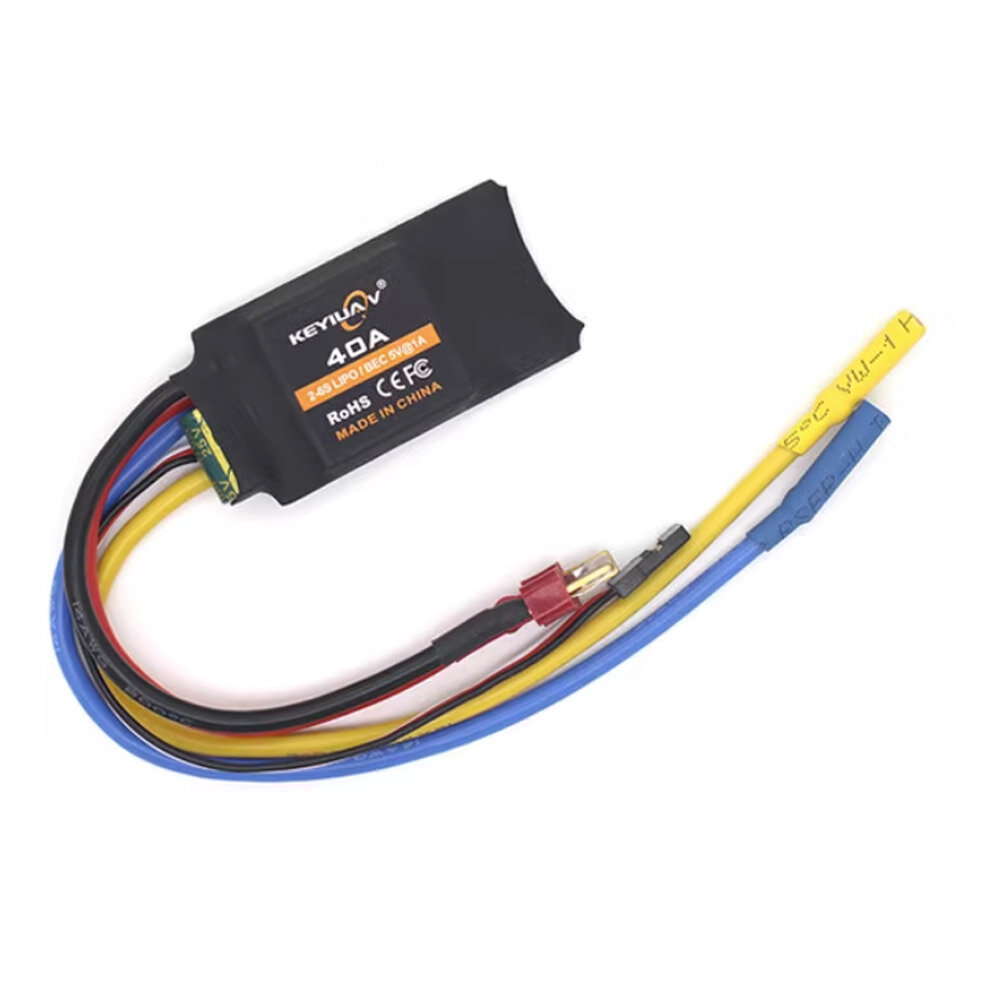

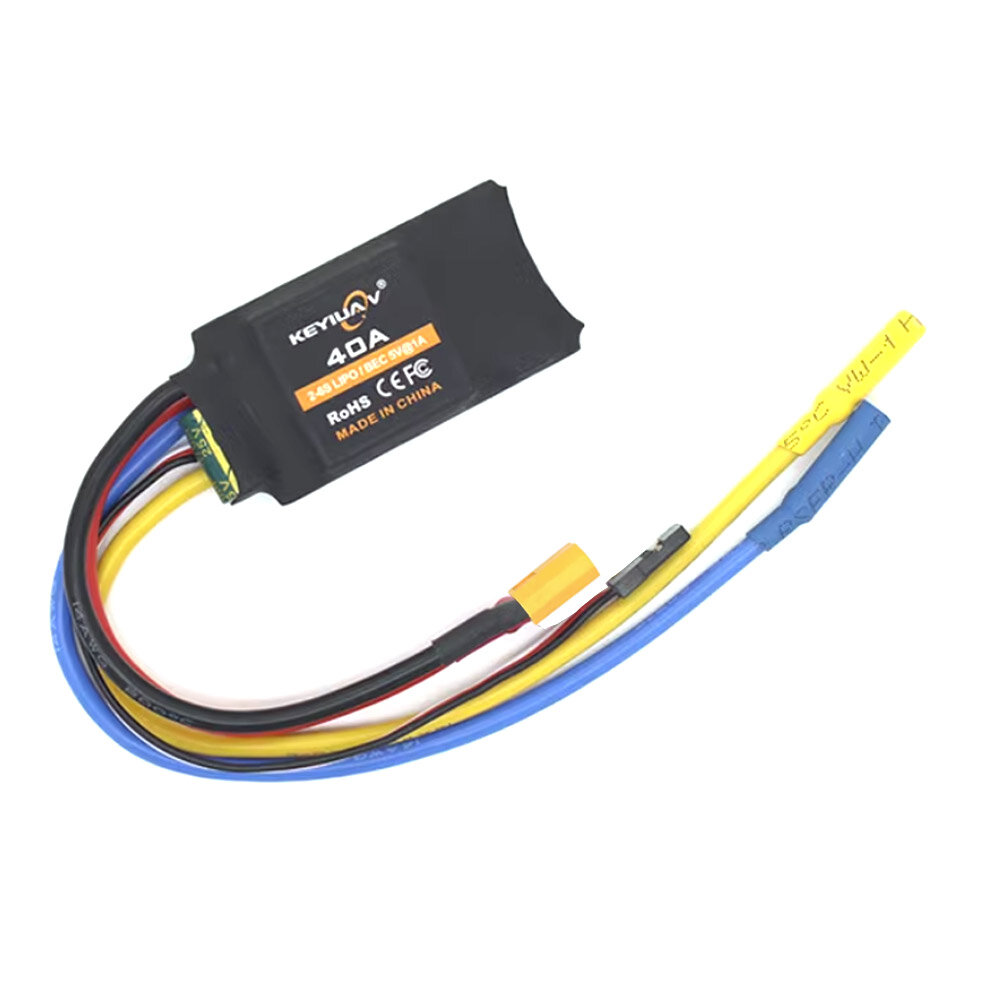

Brushed Double Way 40A 2-6S 6.-25V Esc 4.0mm Banana Plug For Rc Car Boat Vehicle Models High Power Motor Silence Go Forward Backward With Brake
Direct purchase from the factory
Garantisadong Ligtas na Checkout
Libreng Regalo
Patakaran sa Pagpapadala
Patakaran sa PagbalikLibreng Regalo
Welcome to Roymall, your professional website for purchasing premium department store gifts. We highly value and appreciate your support, and we want to express our gratitude by adding an extra touch of excitement to your purchases. When you shop with us, you not only get to enjoy high-quality products that enhance your lifestyle, but you'll also receive an exclusive free gift with every order you place. Ready to explore our collection and find your perfect gifts? Browse our selection of premium department store items, place your order, and look forward to the excitement of your free gift arriving alongside your purchase.Patakaran sa Pagpapadala
We will work hard to deliver items to you after receiving your orders and make sure they arrive safely. Delivery details will be provided in your confirmation email.In most cases, orders are processed within 2 days.Under special circumstances, it will be delayed as follows: When you place an order on Saturday, Sunday or public holidays, it will be delayed for 2 days..Normally, it needs 5-7 working days (Monday to Friday) without being affected by flight delay or other environmental factors..Because our shipping service is worldwide so the delivery times will depend on your location so it may need a few times and please wait patiently if you are in remote districts or countries.1. Patakaran sa Pagbalik at Pagpapalit
We only accept items purchased from roymall.com. If you purchase from our local distributors or other retailers, you cannot return them on our side. Final sales items or free gifts are not acceptable for a return. To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.After receiving return instructions from us, please package up your returned items and drop your package at the local post office or another courier.We will process your return or exchange item within 3-5 working days after we receive it. The refund will be processed and credited automatically to your original method of payment.No returns or exchanges can be accepted if the product was custom produced, including custom size, custom color, or custom printed.Need more help, please contact us. service@roymall.com or Whatsapp: +8619359849471
2.Patakaran sa Refund
You'll get a full refund or 100% store credit after we receive the returned package and check it. The refund will be processed and credited automatically to your original method of payment. Please note that shipping costs and any duties or fees are not refundable. The extra shipping costs are non-refundable once the package has been shipped. You are responsible for paying these fees and we’re unable to waive or refund them, even if the order is returned back to us.Once we received and confirmed your returned item, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.If you have any problems regarding the refund process, please contact us. service@roymall.com or Whatsapp: +8619359849471Suitable for high current motors such as 380, 390, 540, 550, 775, 795, 895 series. This product has a feature: silent, which can eliminate the buzzing sound of the motor during low-speed control as much as possible! parameter:
Motherboard size: length 59mm * width 30mmO weight: 30g
Voltage: 6-25V, current 40A (maximum 6S, over 6S will burn)
The signal of the remote controller (PWM1500us/±50us at the middle point), the minimum travel range of 800-1100 and the maximum of 1900-2200 are automatically adapted, beyond the ESC lock.
With BEC5Vuff201A (for example, when using 4S power supply, it is recommended that the receiver use an external UBEC module) with runaway protection (the value of the corresponding joystick channel"s runaway protection should be in the middle position)
There is a power-on prompt (you will hear the motor "beep" to prompt power-on).
Start with a neutral point (throttle channel 1500, you will hear the motor "long beep", and the ESC starts).
Power-down protection: power supply voltage is lower than 4V, ESC restart protection (for example: large current discharge, poor performance battery voltage drop is too large, ESC protection, after protection, the motor stops, and after the motor stops, the battery voltage recovers, Back to the neutral point, you hear the motor unlocking sound again).
The bec output is 5v and the maximum 1A is enough for you to supply power to the receiver (this ESC is a linear voltage regulator, the greater the voltage difference, the greater the heat, and if it is above 4S to connect the steering gear, please use an external UBEC step-down module to supply power to the receiver). If you use an external When setting UBEC, remember to pull out or disconnect the "red" wire of the white, red and black wires of the ESC signal wire.
The forward and reverse control of this ESC is: 1 to 1 symmetrical speed (that is, both forward and reverse outputs are 40A)
With mute processing: The common ESC will make a "beep beep..." buzzing sound when the motor is controlled at low speed, but this ESC will try to eliminate this sound after processing.
With overheating protection: overheating 90 degrees, the ESC stops output, and resumes after cooling down.
Braking/non-braking mode can be switched: when the joystick returns to the neutral position and the throttle is 0, stop (with inertia) or brake (no inertia) Notes:
If the +-level connector on the motor has a capacitor, except for the C104 anti-interference capacitor, other capacitors (for example: capacitors above 2uf) cannot be connected.
Package Included:
1x esc
